Quotes - Sales - EngineeringAB-701-D4-SP
American Industrial| Product | Style | Series | Tube Side |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | AB Series | One Pass |
-Download
Datasheet

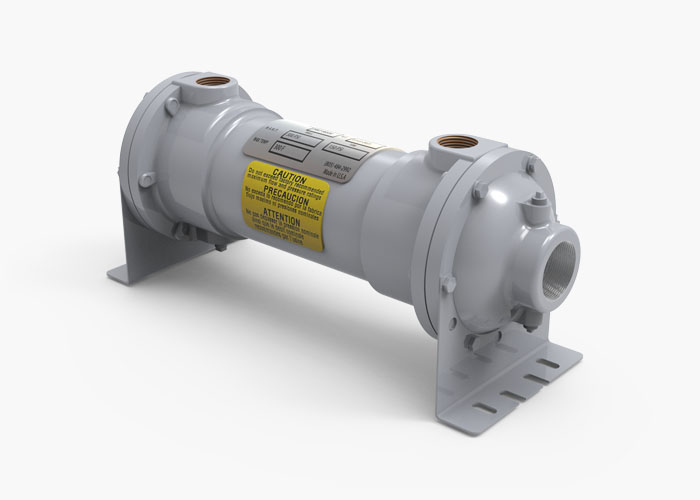

Note: Unit pictured is representative of standard unit and may not exactly depict p/n AB-701-D4-SP as shown on this page.
Description
The AB Series is a reliable, high-efficiency 9-pass shell and tube heat exchanger. This unit features Cast Iron bonnets, 3.66" diameter shell and core length of 9", 0.25" Copper tubing in a One Pass configuration. This exchanger is built for a maximum working pressure of 300 PSI and max temperature of 300F. This makes AB-701-D4-SP an excellent choice for demanding environments requiring consistent, low-maintenance cooling, and easy installation.
Product Overview
Part Number:
AB-701-D4-SP
Series:
AB
Brand:
AIHTI / American Industrial
Configuration
Shell Diameter:
3.66"
Core Length:
9"
Tubing:
0.25"
Tube Side Pass:
One Pass
Alternate P/N:
AB-701-D4-SP-STS
Construction
- Tubing: Copper
- Bonnets: Cast Iron
- Zincs: Optional
Rating
- Max Pressure: 300 PSI
- Max Temperature: 300F
